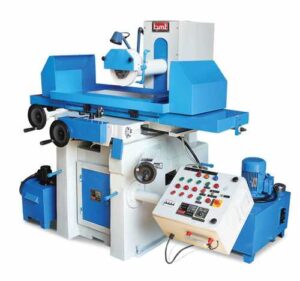

What Is A Surface Grinding Machine?
A Surface Grinding Machine is a specialized machine tool used to create a flat surface on both metallic and non-metallic materials.
It rotates an abrasive grinding wheel against the surface of the workpiece to remove small layers and produce a uniform surface finish. They can be operated manually or automatically and are widely used in many places including tool rooms, production workshops, and machine shops for the tasks requiring high precision.
Modern surface grinders often come with CNC control systems, enabling high-speed, automated finishing with micro accuracy, which is a crucial factor in industries demanding strict dimensional tolerance.
What Are The Parts of Surface Grinding Machine?
The main parts of a surface grinding machine include:
- Base – Acts as the foundation, providing support and absorbing vibrations during grinding.
- Table – Holds the workpiece and moves it back and forth under the grinding wheel.
- Column – Supports and guides the movement of the wheel head vertically.
- Wheel Head – Houses the grinding wheel and motor assembly.
- Grinding Wheel – The abrasive wheel used for material removal and finishing.
- Spindle – Rotates the grinding wheel at controlled speeds for cutting action.
- Cross Feed Hand Wheel – Moves the table or wheel laterally during grinding.
- Vertical Feed Hand Wheel – Adjusts the wheel height and depth of cut.
- Magnetic Chuck – Securely holds metallic workpieces in place during grinding.
- Coolant System – Circulates coolant to reduce heat and prevent surface damage.
- Dressing Tool – Trues and sharpens the grinding wheel for accuracy.
- Motor – Drives the spindle and table movement with constant power.
- Control Panel – Allows the operator to monitor and adjust machine settings.
Each component plays a critical role in delivering uniform cuts and maintaining close tolerances during operation.
What Is The Working Principle of Surface Grinding Machine?
The working principle of a surface grinder relies on the abrasive cutting process. The high-speed rotating grinding wheel acts as a cutting tool made up of hard abrasive grains. When the workpiece is locked on the magnetic chuck, the wheel passes over its surface, gradually removing microscopic chips of material.
The material removal happens through the shear deformation caused by abrasive contact. Consistent reciprocation between the table and wheel achieves a smooth, accurate, and flat finish, a fundamental requirement in tool manufacturing and mold making.
What Is Surface Grinding Machine Process?
- The surface grinding process is a controlled machining process performed at high speed to remove fine material layers.
- The process uses high-precision wheel dressing, coolant management, and feed control systems for superior finishing.
- Its applications are prominent in achieving a precision of up to ±0.002 mm and surface roughness under Ra 0.4 μm.
- The process stages include setup, dressing, grinding, inspection, and final polishing—each ensuring material integrity and smoothness.
Working of Surface Grinding Machine
The step-by-step working of a surface grinding machine is as follows:
Step 1: Mounting the Workpiece
Securely fix the workpiece on the magnetic chuck.
Step 2: Wheel Selection
Choose a suitable abrasive wheel (like alumina or silicon carbide) based on material hardness.
Step 3: Setup
Adjust parameters such as wheel speed, feed rate, and table motion.
Step 4: Grinding Operation
The wheel rotates at high speed while the workpiece reciprocates on the table.
Step 5: Material Removal
The abrasive grits cut or wear down the surface in each pass.
Step 6: Coolant Application
Coolant is sprayed to prevent overheating and surface burns.
Step 7: Finishing Pass
Final light passes ensure dimensional precision and mirror-quality finish.
What Are Different Types of Surface Grinding Machine?
| Type | Description |
| Horizontal Spindle Reciprocating Table | The wheel’s edge contacts the surface for fine finishing; widely used in workshops. |
| Vertical Spindle Reciprocating Table | Uses the face of the grinding wheel; ideal for removing stock quickly |
| Horizontal Spindle Rotary Table | The rotating table allows circular grinding; perfect for small batches |
| Vertical Spindle Rotary Table | Suitable for mass production; provides both roughing and finishing simultaneously |
| CNC Surface Grinder | Automated system with programmed controls ensuring high repeatability and precision |
| Double Disc Grinder | Grinds both sides of components simultaneously; used for parallel surface finishing |
Few Top Surface Grinding Machine Brands
Here are the top five surface grinding machine brands globally recognized for reliability and precision:
- Kent Industrial USA (USA) – Known for advanced CNC and manual surface grinders.
- Okamoto Machine Tool Works (Japan) – Industry leader in high-precision grinding systems.
- Sharp Industries (USA) – Popular for durable toolroom precision surface grinders.
- Elb-Schliff (Germany) – Renowned for innovative automated grinding solutions.
- ANTISHICNC (China) – Specialized in rotary surface grinder and CNC-based equipment.
What Are The Advantages of Surface Grinding Machine?
- Achieves high dimensional accuracy and flatness.
- Produces superior surface finishes compared to milling or turning.
- Handles very hard materials like carbide, steel, and cast iron.
- Compatible with automation for high-volume production.
- Maintains consistent quality across multiple parts.
What Are The Disadvantages of Surface Grinding Machine?
- Requires skilled setup and supervision.
- Generates significant heat, needing efficient coolant systems.
- Not suitable for heavy stock removal.
- Higher operating cost due to wheel wear and dressing.
- Limited use for irregular or curved surfaces.
What Are The Applications of Surface Grinding Machines?
A surface grinding machine is widely used in:
- Automotive Industry:
For precision engine parts and spacer plates.
- Tool and Die Manufacturing:
For dies, punches, and cutting tools.
- Aerospace and Defense:
For achieving flatness on high-strength alloys.
- Metal Fabrication:
For refining welds and machining plates.
- Construction:
As concrete surface grinders for leveling and polishing floors.
And More….
Conclusion
A surface grinding machine is indispensable in precision engineering, providing unparalleled accuracy and finish quality. Whether for small-scale manual grinding or fully automated CNC grinding, these machines define the standard for modern manufacturing accuracy. Understanding its types, working, and advantages helps engineers and machinists choose the right surface grinder for their needs.
Frequently Asked Questions
1. What is a surface grinding machine used for?
It is used for creating flat, precise surfaces on metals and non-metals by removing minute material layers.
2. What are the main types of surface grinding machines?
Horizontal, vertical, rotary, CNC, and double-disc grinders are the most common types.
3. How does a surface grinder work?
The rotating wheel abrades the workpiece surface while it moves under controlled feed rates and pressure.
4. What are the key advantages of using a surface grinder?
They ensure accurate flat surfaces, consistent parallelism, and refined finishes at high production efficiency.
5. Which industries use surface grinders?
Surface grinders are widely used in automotive, aerospace, tooling, and die-making industries.
