What is a Washing Machine?

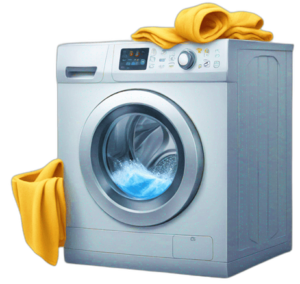

Front Load Washing Machine

A Washing Machine is an electrical home appliance designed to wash clothes with a minimum human effort to operate that works on a combination of mechanical agitation, along with thermal energy, and chemical action. This machine is also termed as Clothes Washer or Laundry Machine. By converting Human hand washing to the machine automated process, washing machines reduced the need for manual labor. Moreover, the introduction of microcontrollers in washing machines created a great revolution in developing different kinds of washing machines with the best user-convenient features.

Parts in Washing Machine:

Parts in Washing Machines vary according to their technology, type, and size. Here are a few parts that are generally found in many machines.

    1. Paddle

    Also known as an Agitator or Pulsator, which creates a mechanism of rotation of clothes during the wash cycle by creating to-and-fro motion. Some machines have an agitator while others have an Impeller.

      2. Water pump

      Water movement in the machine is managed, which means filling and draining operations are performed.

        3. Water Inlet Control Valve

        It operates automatically to control the entry of water flow during different wash programs. This allows water when needed.

          4. Drum / Tub with holes

          The drums are vertically or horizontally oriented that store the laundry to perform the complete washing process.

            5. Rubber Seal or Gasket

            It creates a tight seal around the washing machine door that helps to prevent water or other liquid leakages.

              6. Inlet and Outlet pipes

              Inlet pipe allows water into the machine and outlet pipe sends away the dirt, water, and residue from the machine.

                7. Detergent tray or Dispenser and Softener tray or slot

                Detergent and softeners have separate slots for adding them to the clothes for washing. Providing trays is an effective way to remove the accidental stains of detergent and softeners, if poured directly on the clothes.

                  8. Timer

                  The timer assigns a particular duration for every wash cycle by which clothes are washed for the exact time. It prevents the clothes from under and over washing.

                    9. Washing Machine Motors

                    The general function of a motor is to convert electrical energy into mechanical energy. In the washing machine, an electrical power supply helps the agitation of clothes in the drum through energy conversion. Generally, there are 4 types of motors, they are

                    a) Universal Motors

                    Mostly found in Semi-Automatic machines and Top-Load washing machines.

                    b) Induction Motors

                    Often found in current high-efficiency Top-Load and Front-Load washing machines.

                    c) Device Driver Motors

                    These are found in high-performance machines, with powerful cleaning and high spinning.

                    d) Inverter Motors

                    This type of motor is required when speed changes are needed. Speed is dependent on the fabric selected.

                      10. Control panel

                      Control Panel acts as an interface where users can select the type of settings, wash cycles, and start and stop cycles.

                      How does the Washing Machine work?

                        • Initially, clothes are loaded in the drum evenly. Detergent and softener are added before switching on the power supply.
                        • Once the wash cycle is selected, water is allowed into the drum with the help of an inlet pipe.
                        • The agitation process commences in the drum once the water is filled to the designated level.
                        • Once the wash cycle is completed, the excess or leftover detergent residue and fabric softener on the clothes are removed through the rinse function.
                        • Spinning facilitates the rotation of the drum, allowing centrifugal force to extract water from the fabric and reducing drying time.
                        • The power indicator turns off once the washing is completed.
                        • In some Washers with Dryer Combined machines, the dryer removes the excess moisture from the fabrics. These types of machines are used mostly in cold countries.

                        Modes of Washing or Wash cycles

                         Different types of wash cycles are available in modern Washing Machines based on the fabric type, available time duration, and soiled clothes. They are:

                          1. Normal wash

                          This type of wash is mainly suitable for washing everyday laundry by cleaning clothes effectively.

                            2. Quick wash

                            This type of wash is mostly suitable for clothes with less dirt and shorter wash cycles.

                              3. Delicate wash

                              This wash is mainly for delicate fabrics like silk, wool, and synthetic fabrics which require less spinning speed.

                                4. Heavy Duty wash

                                This kind of wash is for completely strained or heavy soiled clothes, that require more spins rather than normal.

                                  5. Different fabric wash

                                  Based on the fabric type, temperature in the wash cycle varies automatically as high, moderate or normal for removing stains and dirt effectively.

                                    6. Eco wash

                                    This wash type is mainly designed to reduce energy consumption with a longer washing time.

                                      7. Baby Care

                                      This type of wash is designed to remove allergens and bacteria from the baby’s clothes effectively.

                                      Latest Advancements in Washing Machine:

                                        1. Inbuilt Heaters

                                        2. Soil Sensors

                                        3. Delay Start

                                        4. Smart Technology (Wifi, Voice integration, and App Integration)

                                        5. Steam Cleaning

                                        6. Auto Restart

                                        7. Child Lock

                                        8. Self Cleaning

                                        9. Zero Pressure Technology

                                        10. Inbuilt Soak Technology

                                        11. Stainless Steel Drum and Diamond Drum

                                        12. Smart Home Integration

                                        13. Mesh Lint Filter

                                        14. Inverters

                                        15. Turbo Wash

                                        16. Water Recycling

                                        17. Add Wash Technology

                                        18. And more

                                        Classification of Washing Machines

                                        Washing machines are classified into different types, they are

                                            1. According to the Type of Loading
                                            2. According to the Operation Type
                                            3. According to the Design and Features
                                            4. According to the Special Features
                                            5. According to the Size and Capacity

                                          1. Type of Washing Machines According to Loading

                                          a) Top Load Washing Machine

                                          Top Load Washing Machine

                                          A  machine designed with a single drum oriented vertically that performs both washing and drying in a single drum.

                                          In this type of machine, clothes are added from the top and the agitator is present in the drum to facilitate the rotation of clothes.

                                          Reasons for Considering Top Load Washing Machine

                                            • There is no need to bend, loading and unloading the clothes are easy.
                                            • Single drum with no manual transfer of clothes to another drum.
                                            • Short wash cycles
                                            • More affordable

                                            Top-Load Washing Machines are further classified into two types:

                                            i) Traditional Top Load

                                            This machine has a vertically oriented drum with a lid at the top for loading clothes produces more noise and the wash cycle is lengthy.

                                            ii) High-Efficiency Top Load

                                            These machines are designed to overcome the defects of traditional top load with advanced technology and impellers for the rotation of clothes. The main uses of these machines are energy efficiency and less water usage.

                                            b. Front Loading

                                            A Front-Load Washing Machine has a horizontally oriented drum through which one can add clothes and depends on the rotation of the drum for cleaning and removing dirt.

                                            Reasons for Considering Front-Load Washing Machine

                                              1. The front drum gently washes and efficiently removes stains and dirt from clothes. These machines are less prone to wear and tear of fabric.

                                              2. These machines utilize less water when compared with other machines.

                                              3. These machines require less detergent liquid, offer deep cleaning of clothes with various wash cycles and are energy efficient.

                                              2. Type of Washing Machine According to the Process

                                              a) Semi-Automatic Washing Machines

                                                • This type of washing machine is designed to have a small wash cycle duration.
                                                • It has two drums, one for washing the clothes and the other for drying them. These machines are also called “Twin-Tub Washing Machines”.
                                                • Human effort is necessary to move the clothes from the washing drum to the dryer drum and are ideal for small to medium loads.

                                                Reasons to Choose Semi-Automatic Washing Machine

                                                  1. Budget-friendly
                                                  2. Energy efficiency
                                                  3. Best suitable for quick washes.
                                                  4. Choose semi-automatic machines if you do not have a constant water supply or low-pressure water available in areas.
                                                  5.

                                                  b) Fully Automatic Washing Machine

                                                  These are designed to handle the whole laundry washing process with less human requirement.

                                                  Reasons  to choose a Fully -Automatic Washing Machine

                                                    1. Multiple Wash cycles
                                                    2. Automatic detergent dispenser and softener dispenser.
                                                    3. Self-cleaning and One-touch operations.
                                                    4.

                                                    3. Type of Washing Machines According to Size and Capacity

                                                    Based on size and capacity, these machines are classified into

                                                      • Mini washing or compact for small families  (3 kg – 8 kg)
                                                      • Standard size for 4-5 members in a house (8 kg – 12 kg), and
                                                      • Large capacity mainly for large families (more than 12 kg)

                                                      4. Types of Washing Machines According to Design and Features

                                                        1. Conventional: These are traditional or standard washing machines used for decades.

                                                        2. Smart Washing:  These are with recent innovations like efficiency, new techniques, and control.

                                                        3. Portable Washing: These are suitable for limited space and mainly for users who frequently move from one place to another:

                                                        4. Compact: These are the same as portable washing machines with a minimum weight of 3kg and a maximum of 8kg.

                                                        5. Washer-Dryer Combo: These are the machines containing both washer and dryer as a combination, mainly used in places with low temperatures.

                                                        6. Commercial Washing Machines: These are the machines that serve the high laundry capacities mainly used in hospitals, hotels, etc.

                                                        5. Types of Washing Machines According to Special Features

                                                        Machines are designed with additional features like

                                                          • Energy efficiency for less power consumption
                                                          • Less water usage (Water efficiency)
                                                          • Steam cleaning (Removing stains through high temperatures), and
                                                          • Self-cleaning function to remove residue and fungi for increasing durability.
                                                          •

                                                          Factors to consider while choosing a washing machine:

                                                          Type and Budget

                                                            • Type

                                                            Type involves multiple choices like semi-automatic, top, and front-load machines. Select the machine by considering space availability in your utility area.

                                                              • Budget

                                                              Prices vary based on the user requirements. Choose a machine based on your budget while considering its benefits and drawbacks.

                                                              Capacity and Number of Users

                                                                • For large families, you have to choose the machines that support higher loads of laundry.
                                                                • Choose above 8 kg for adding all the laundry in one go.
                                                                • Also, focus on laundry needs, if you frequently wash heavy blankets or baby clothes.

                                                                Spind Speed

                                                                • It is measured in RPM (Rotations Per Minute)
                                                                • A high rpm machine offers a shorter drying period but sometimes a high spin also affects the cloth durability. An increase in spin speed also increases electricity consumption.

                                                                  Energy Efficient

                                                                  While purchasing a washing machine, choose a high energy efficient one for a low electricity bill producer. Ratings of Energy efficiency are provided on every machine, cross-check those while buying.

                                                                  Wash programs and Enhanced features

                                                                  Modern washing machines feature various wash cycles like eco wash and rinse. They also include inbuilt heaters, steam cleaning, and smart technology for remote control using a smartphone.

                                                                  Device warranty and Durability

                                                                  Modern washing machines come with extended warranties for both the machine and the motor. It is important to check the quality of the machine and its components for protection against inbuilt issues.

                                                                  Top Brands in Washing Machine

                                                                  The top washing machine brands in the current market are.

                                                                    1. IFB

                                                                    2. Bosch

                                                                    3. LG

                                                                    4. Samsung

                                                                    5. Haier

                                                                    6. Godrej

                                                                    7. Whirlpool

                                                                    8. And more

                                                                    Conclusion

                                                                    The invention of the washing machine has replaced the traditional method of hand-washing laundry in most parts of the world. Also, fabricated with unique features based on user needs and attractive prices. The technology of microcontrollers and sensors is constantly advancing day by day. Washing machines are necessary home needs that help old and disabled people to wash their clothes, laundry materials, etc.

                                                                    Frequently Asked Questions

                                                                    1. Which type of washing machine is better, top load or front load?

                                                                    Front Load is the best choice for those who prioritize longer clothes durability and reduced water usage compared to other machines.

                                                                    2. What are the advantages and disadvantages of a Top Load Washing Machine?

                                                                    Advantages of a Top load Washing Machine:

                                                                    i. Less price with unique features

                                                                    ii. Less maintenance, longer duration of the machine, and short wash cycles.

                                                                    Disadvantages of a Top Load Washing Machine:

                                                                    i. Require more water, less energy efficiency, and more detergent is required.

                                                                    ii. The agitator in the center affects the cloth’s durability.

                                                                      3. What are the advantages and disadvantages of Front Load Washing Machine?

                                                                      Advantages of a Front load Washing Machine:

                                                                      i. Less water usage and less detergent requirement

                                                                      ii. Energy efficiency and drying time is reduced.

                                                                      Disadvantages of a Front load Washing Machine:

                                                                      i. Much costlier and mold vulnerable.

                                                                      ii. Longer wash cycles and maintenance is more.

                                                                        4. Which type of Washing Machine brand is better to purchase?

                                                                        Choose Front-Load Washing Machines, if you focus mainly on efficient cleaning, cloth durability, and low water usage.

                                                                        Top-Load machines are mostly budget-friendly with unique features. It can be a suitable choice for daily laundry and effective cleaning.
